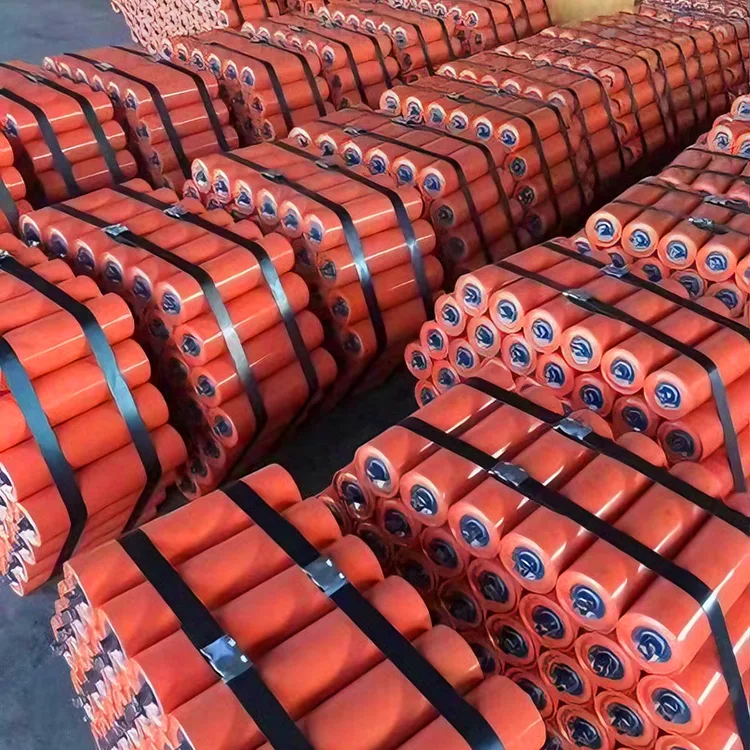

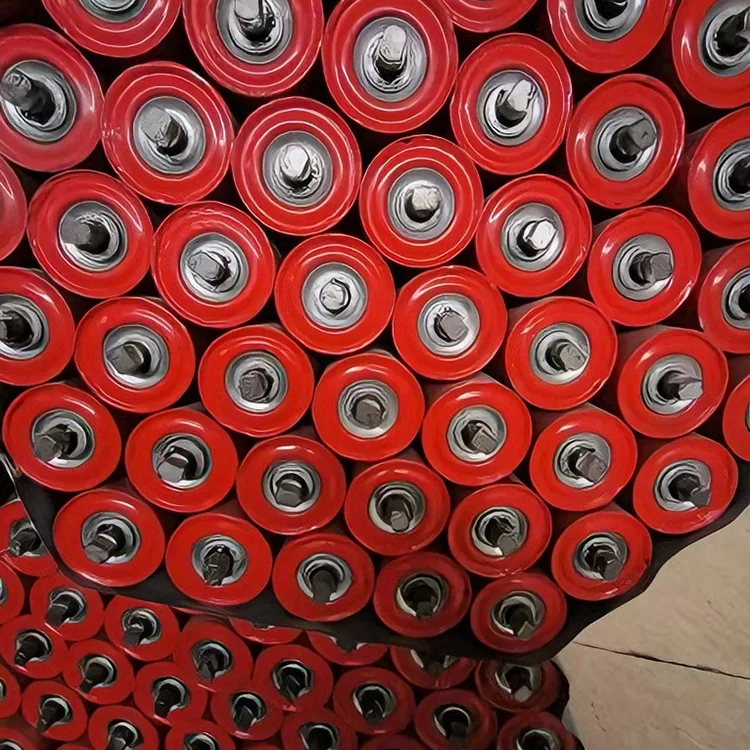

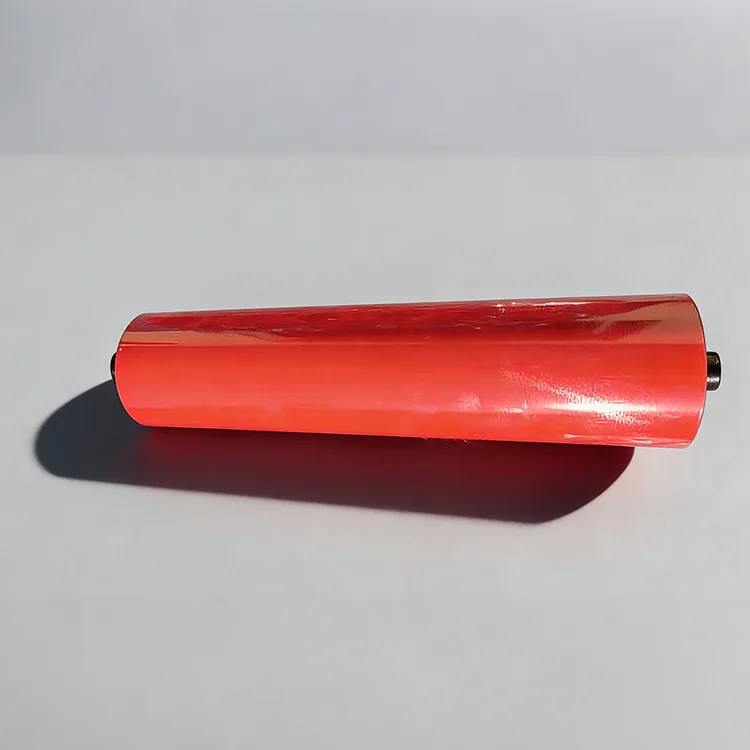

Self-Aligning Flat Idlers

Rui Le'er Self-Aligning Flat Idlers are made from top-grade Chinese carbon steel, ensuring superior performance and longevity in demanding environments. With diameters ranging from 60mm to 194mm, they provide reliable support for conveyor systems. Whether you're looking for a China-based supplier or manufacturer, Rui Le'er offers customized solutions to meet your needs. Contact us today for more details!

The idler set is a core load-bearing and guiding component of the belt conveyor. Composed of several idlers, brackets, fasteners and other parts, its performance directly affects the operation stability of the conveyor, the service life of the conveyor belt and the overall energy consumption.

Features:

1. Low resistance and wear-resistant, reducing energy consumption and increasing efficiency: The idler rollers adopt a rolling friction structure, which significantly reduces the operating resistance between the idler rollers and the conveyor belt, thus reducing the energy consumption of the conveyor drive system;

2. Flexible structure and strong adaptability:  Depending on the type of conveyor (such as horizontal or inclined), belt width, and conveying conditions, the idler roller sets can be flexibly configured into different forms such as trough, parallel, and self-aligning, adapting to the conveying needs of various materials such as ore, grain, and chemical raw materials.

3. Convenient installation and low maintenance costs: The idler roller sets have a modular design, with a simple connection structure to the frame, making assembly and disassembly easy; routine maintenance only requires periodic checks of rotational flexibility and lubrication, and the replacement cost of wear parts is low, requiring no specialized tools.

Stable and anti-deviation, extending conveyor belt life: The self-aligning idler roller sets can automatically correct the deviation tendency of the conveyor belt, preventing edge wear and tearing; the impact idler roller sets can mitigate the impact force of falling materials, reducing local damage to the conveyor belt and extending its overall service life.

4. Diverse materials, adaptable to special working conditions:  Depending on the operating environment, idler roller sets made of different materials such as carbon steel, stainless steel, and polymers can be selected to meet the needs of special scenarios such as corrosion resistance, high and low temperature resistance, and low noise, adapting to complex working conditions in chemical, food, and underground mining industries.

Functions:

1. Supporting materials and the conveyor belt

Supports the weight of the conveyor belt and the bulk materials on it, reducing the sag of the conveyor belt during operation and ensuring stable material transport.

2. Guiding and preventing belt deviation

Through specific assembly methods (such as self-aligning idler sets), it guides the conveyor belt to maintain centered operation, effectively preventing belt deviation and wear.

3. Reducing operating resistance

The rolling friction of the idlers replaces the sliding friction between the conveyor belt and the frame, significantly reducing the energy consumption of the conveyor and improving equipment transmission efficiency.

Materials and Applicable Working Conditions

The materials of idler sets should be selected according to the characteristics of conveyed materials and working conditions:

●Carbon Steel: Low cost and high strength, suitable for dry working conditions where conventional materials such as ores and coal are conveyed.

●Stainless Steel: Corrosion and rust resistance, applicable to scenarios with corrosive media or hygiene requirements such as chemical industry and food processing.

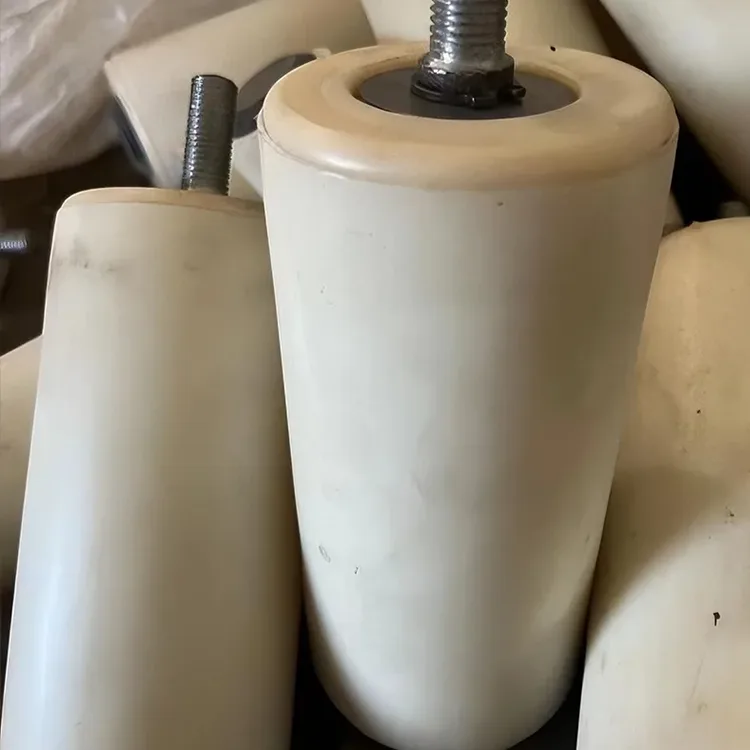

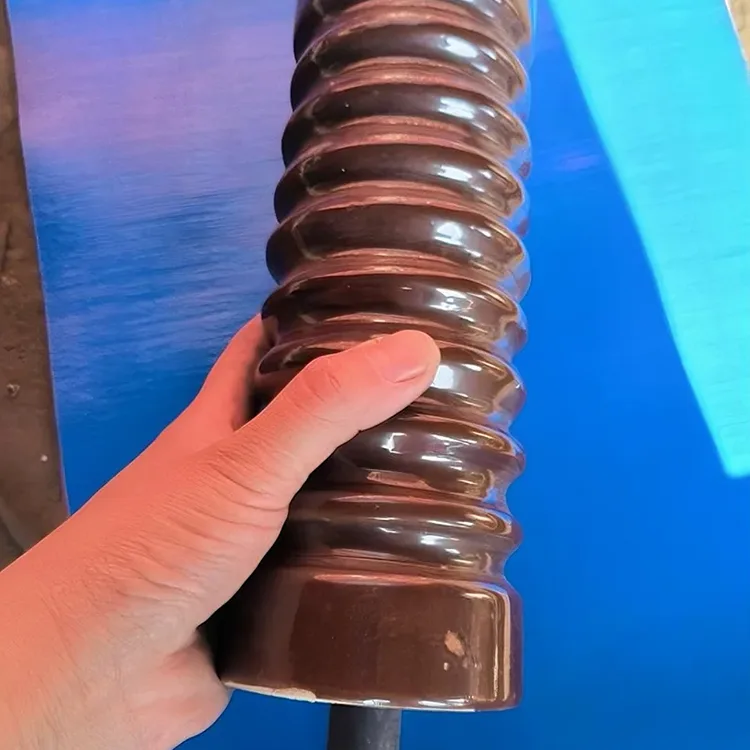

●Polymer Materials: Light weight, wear resistance and low noise, suitable for workshops with strict noise control or light-load conveying scenarios.

Routine Maintenance

Regularly check the flexibility of the idler rollers and the tightness of the support brackets, and promptly replace any jammed or damaged rollers; regularly apply grease to reduce wear and extend the overall service life of the idler roller assembly.

Product Specification

When selecting and purchasing idler components, the following points need to be taken into consideration:

1. The specifications of the idler rollers must strictly match the conveyor belt width, belt speed, conveying capacity, and installation spacing. This is the basis for selection.

2. Belt width matching: The width of the idler roller assembly should be 100-200mm longer than the conveyor belt width to prevent material spillage or wear on the edges of the conveyor belt.

3. Load capacity matching: Calculate the rated static and dynamic load of a single idler roller based on the specific gravity of the conveyed material, belt speed, and idler roller spacing to avoid overloading, which can lead to idler roller bending and bearing damage.

4. Roller body material: Carbon steel (galvanized/powder coated): Suitable for conventional working conditions without corrosive or highly abrasive materials (such as conveying coal and sand), offering high cost-effectiveness.

5. Stainless steel (304/316): Suitable for corrosive environments (such as chemical materials, coastal humid areas) or food-grade conveying applications.

6. Polymer materials (HDPE/UHMWPE): Suitable for highly abrasive materials (such as ore, coke), applications requiring low noise, or preventing material adhesion; lightweight and wear-resistant.

7. Shaft material: Prioritize 45# steel heat-treated or stainless steel shafts to ensure sufficient strength and corrosion resistance.

8. Production capacity: Understand the manufacturer's production equipment (such as CNC lathes, automatic welding equipment) and testing methods (such as dynamic balance testing, sealing performance testing) to avoid choosing small workshop-style manufacturers.

9. Confirm installation interchangeability: If replacing existing idler rollers, it is necessary to carefully check the shaft diameter, shaft length, roller body diameter, and installation center distance to ensure a perfect match with the original conveyor's idler roller brackets, avoiding installation problems due to dimensional deviations.

Main Arrangement Forms of Rollers：

1. Troughing Idler

2. Flat Idler

3. Impact Idler

4. Carrying Idler

5. Self-aligning Idler

6. V-type Idler

7. Return Idler

8. Cleaning Idler
